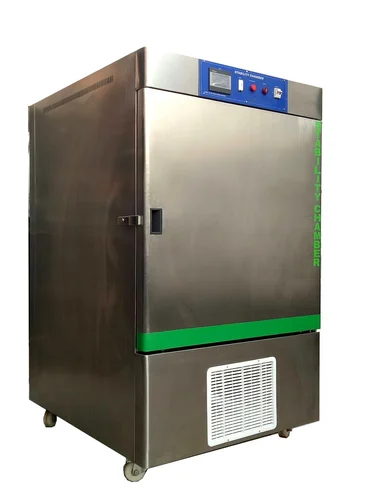

Stability Chamber

Minimum Order Quantity: 1 Piece

Robust construction outer chamber is made of Mild Steel duly pre treated & finished with powder coated paint for lasting finish.Inner chamber made of STAINLESS STEEL SHEET (304 Grade).Fitted with durable coaxial blower for forced air circulation at triple walled back to maintain temperature uniformity in the chamber.Outer front double walled door is insulated and is fitted with magnetic tape for air tight closing for no temperature loss, provided with lock and key arrangement. Inner chamber has SS angels for placing the shelves at convenient levels. Supplied with 2 or 3 removable shelves. A full view inner plexi-glass door enables inspection and monitoring of inner chamber specimens without disturbing the process temperature. High grade PUF INSULA TION between outer and inner chamber for minimal thermal losses. Cooling is done by finned tube evaporator lie in the air circulation path by ISI marked Compressor/Condensing Units CFC free & R-134 a eco friendly refrigerant. Heating is done by indirect heating system by air heaters made of stainless steel placed in the path of moving air in the chamber. Temperature Range. Temperature ranges of our Stability Chamber models are 200C to 600C. Temperature controlled by microprocessor based temperature controller having LED display with an accuracy of +10C fitted with PT-100 sensor (Resolution 0.10C) Humidity System: Humidity is generated by steam injection system consist of boiler tank, placed below the chamber fitted with boiler heater. Humidity Range: 50% of 90% & controlled by mean of an electronic humidity controller cum indicator with an accuracy of + 3 to 5%RH. Control panel having all controls and circuitry are housed at the top fitted with Temperature controller cum Indicator Microprocessor based with LED display for Set V alue (SV) & Process V alue (PV) to select any desired temperature & humidity controller cum indicator provided with Volt meter on the panel to read the incoming voltage. Caster wheel mounted for easy portability . Supplied with cord and plug. Operating Voltage: 220 Volts AC (50 Hz).
